DataGraph Embedding

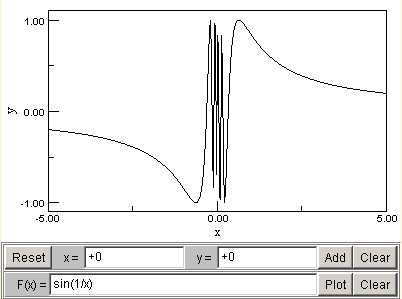

DataGraph plots series of data points, analytic functions, and geometric objects.  It is embedded using the following html tag:

<applet
  codebase="../classes/"
  archive="DataGraph4_.jar,STools4.jar"
  code="dataGraph.DataGraph.class"
  name="DataGraph"
  width="400"
  height="300">

<param name="Function" value="sin(1/x)" />
<param name="XMin" value="-5" />
<param name="XMax" value="5" />
<param name="YMin" value="-1.1" />
<param name="YMax" value="1.1" />
<param name="AutoScaleX" value="false" />
<param name="AutoScaleY" value="false" />
<param name="ShowControls" value="true" />
<param name="DataFile" value="filename" />

</applet>

DataGraph Parameters
AutoScaleX  boolean  Automatically scale the x axis to fit the data.
AutoScaleY  boolean  Automatically scale the y axis to fit the data.
DataFile  boolean  A text file containing (x,y) data points that is loaded at startup.
Function  string  The analytic function, F(x), to be plotted.
ShowControls  boolean  True to show simple user interface.
XMin  double  X scale minimum if autoscale is false.
XMax  double  X scale maximum if autoscale is false.
YMin  double  Y scale minimum if autoscale is false.
YMax  double  Y scale maximum if autoscale is false.

STools Parameters
AppletNames  string  A comma delimited list of applet names occurring within this html page. (See OnLoad.)
Debug  int  Enables debugging messages in Java console; 0 = no messages, 255 = verbose messages.
OnLoad  string  A JavaScript function that will be invoked using LiveConnect after all applets have been loaded.  (See AppletNames.)
Resources  string  A file containing translations of internal text such as buttons and labels.
