DataTable Embedding

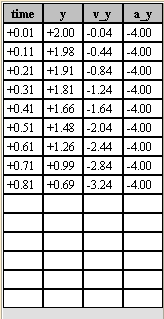

DataTable is designed to be used as a data-listener in order to show a row-column table of numbers. Just as in DataGraph, each column is a series with a unique style. When the data-connection is made, the appropriate series number must be specified.

DataTable is embedded using the following html tag:

<applet codebase="../../classes/"
  archive="DataTable4_.jar,STools4.jar"
  code="dataTable.DataTable.class"
  name="DataTable"
  width="164" height="320">

<param name="ShowScrollBars" value="false">
<param name="LastOnTop" value="false">
<param name="CellWidth" value="40">
<param name="NumRows" value="15">
<param name="NumCols" value="4">
<param name="ShowControls" value="true">
<param name="ShowRowHeader" value="true">
<param name="ShowColHeader" value="true">
<param name="SizeToFit" value="true">

</applet>

DataTable Parameters
ShowControls  boolean  True to show simple user interface.






STools Parameters
AppletNames  string  A comma delimited list of applet names occurring within this html page. (See OnLoad.)
Debug  int  Enables debugging messages in Java console; 0 = no messages, 255 = verbose messages.
OnLoad  string  A JavaScript function that will be invoked using LiveConnect after all applets have been loaded.  (See AppletNames.)
Resources  string  A file containing translations of internal text such as buttons and labels.
