QTime Embedding

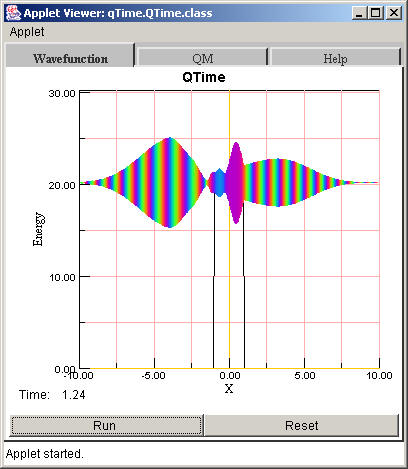

QTime solves the time dependent Schrödinger equation in one dimension. Rather than displaying separate graphs for real and imaginary components of the wave function, the amplitude is presented and color-coded to show the phase.

QTime is embedded using the following html tag:

<applet
  code="qTime.QTime.class"
  codebase="../classes"
  archive="QTime4_.jar,STools4.jar"
  name="QTime"
  width="400"
  height="400">

<param name="Potential" value="20*(step(1+x)-step(x-1))" />
<param name="real" value="cos(2*pi*x)*exp(-(x+4)*(x+4))" />
<param name="imaginary" value="sin(2*pi*x)*exp(-(x+4)*(x+4))" />
<param name="NumPts" value="512" />
<param name="MinX" value="-10" />
<param name="MaxX" value="10" />
<param name="Dt" value="0.02" />
<param name="FPS" value="10" />
<param name="ShowControls" value="true" />
<param name="Resources" value="qtime_en.rc" />
</applet>
